I have upgraded from Plasma/KDE 5 on X11 to Plase/KDE 6 running on a KWin Wayland session. One regression issue I encounter is that there is now a kind of “double” lock screen:

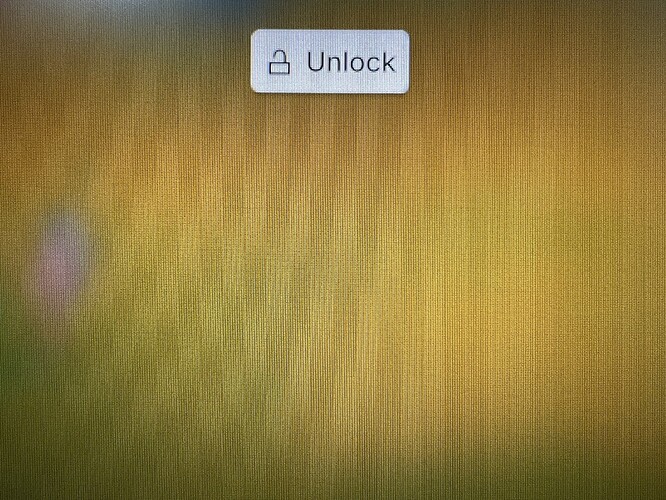

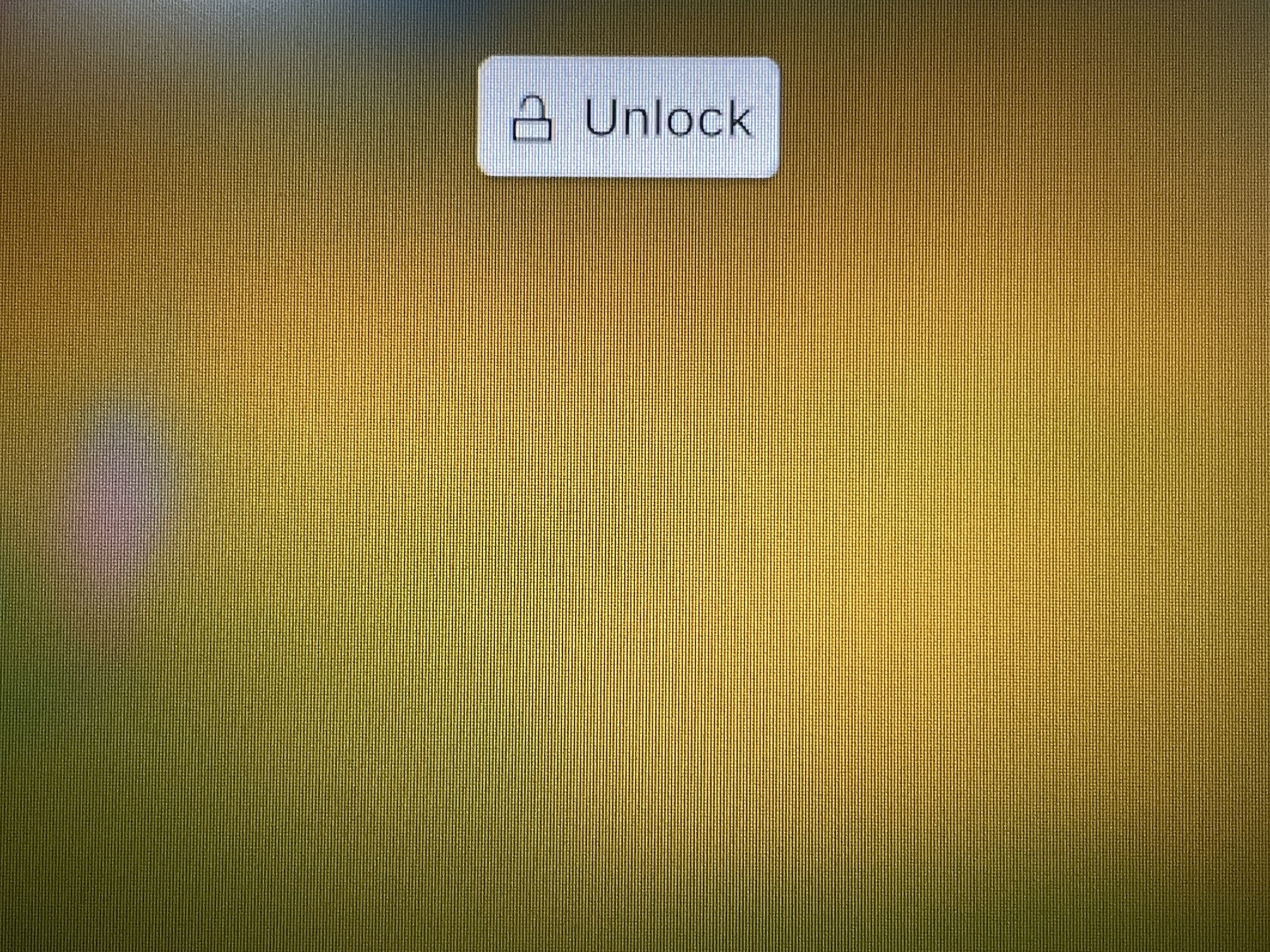

When I am logged into a KDE session, go away from keyboard and the lock screen appears, then the first one looks like the traditional KDE 5 (Breeze themed) lock screen. In the middle of the screen there is my user name and below an input field into which I can type the password. However, after that some kind of second lock screen appears which nearly looks like the first one but has a button with the caption “Unlock” instead of the password input field. After I have clicked onto the button, I am back into the KDE session.
That second step is completely unnecessary. I have already pressed the “arrow” button right of the password input field (or hit the enter key), why that second screen with an additional button?
I believe the issue with this “double lock screen” is somehow related to the new PAM configuration files /etc/pam.d/kde-fingerprint and /etc/pam.d/kde-smartcard next to the old /etc/pam.d/kde. The latter has already existed in KDE 5, the other two seem to have been added with KDE 6.
However, I was not able to figure out, how kde-fingerprint and kde-smartcard are supposed to interact with kde.
In Gentoo, the PAM config files include each other like this
Hence, some time back I edited system-auth to add U2F support for everything. The authentication section in /etc/pam.d/system-auth looks like:
# The advanced control below works as follws:
#
# - If U2F succeeds, then the next 2 lines are skipped.
# This means it is sufficient enough to skip password login (and faillock),
# but the remaining modules are still executed.
# - If U2F fails, the error is ignored and password-login gets it chance.
# - If UNIX succeeds, then the next line is skipped.
# This means faillock is by-passed, but the reamining modules are still
# executed.
# (This is default behaviour by Gentoo.)
# - If UNIX fails, then this is considered ultimately bad.
#
#
auth required pam_env.so
auth requisite pam_faillock.so preauth
auth [success=2 new_authtok_reqd=2 default=ignore] pam_u2f.so cue
auth [success=1 new_authtok_reqd=1 ignore=ignore default=bad] pam_unix.so nullok try_first_pass
auth [default=die] pam_faillock.so authfail
auth optional pam_cap.so
I can also observe that behavior with the fingerprint unlocking. However there are two ‘modes’.

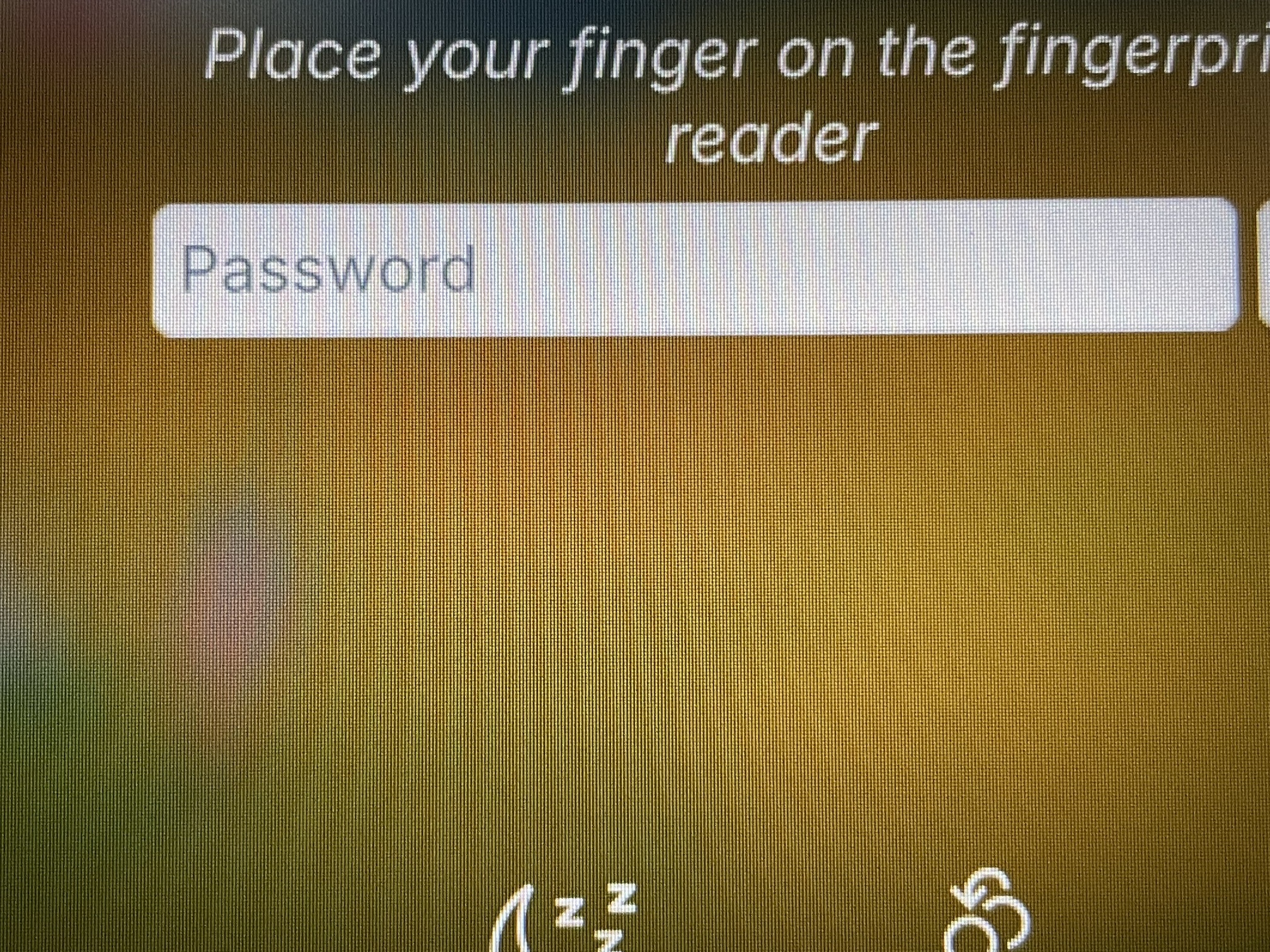

there is a message above the password input field: 'Place your finger on the fingerprint reader

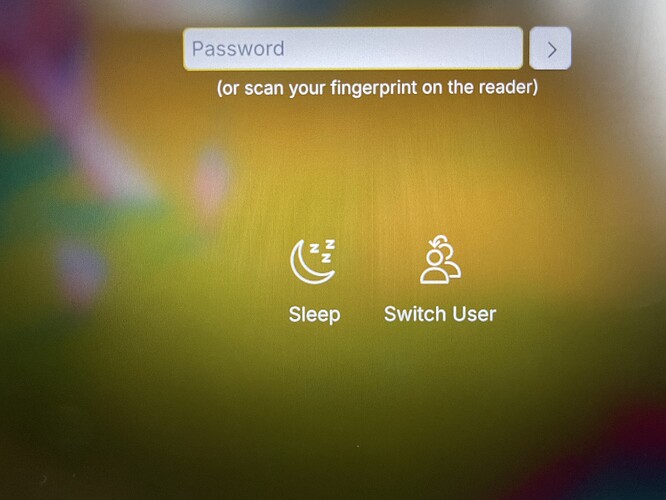

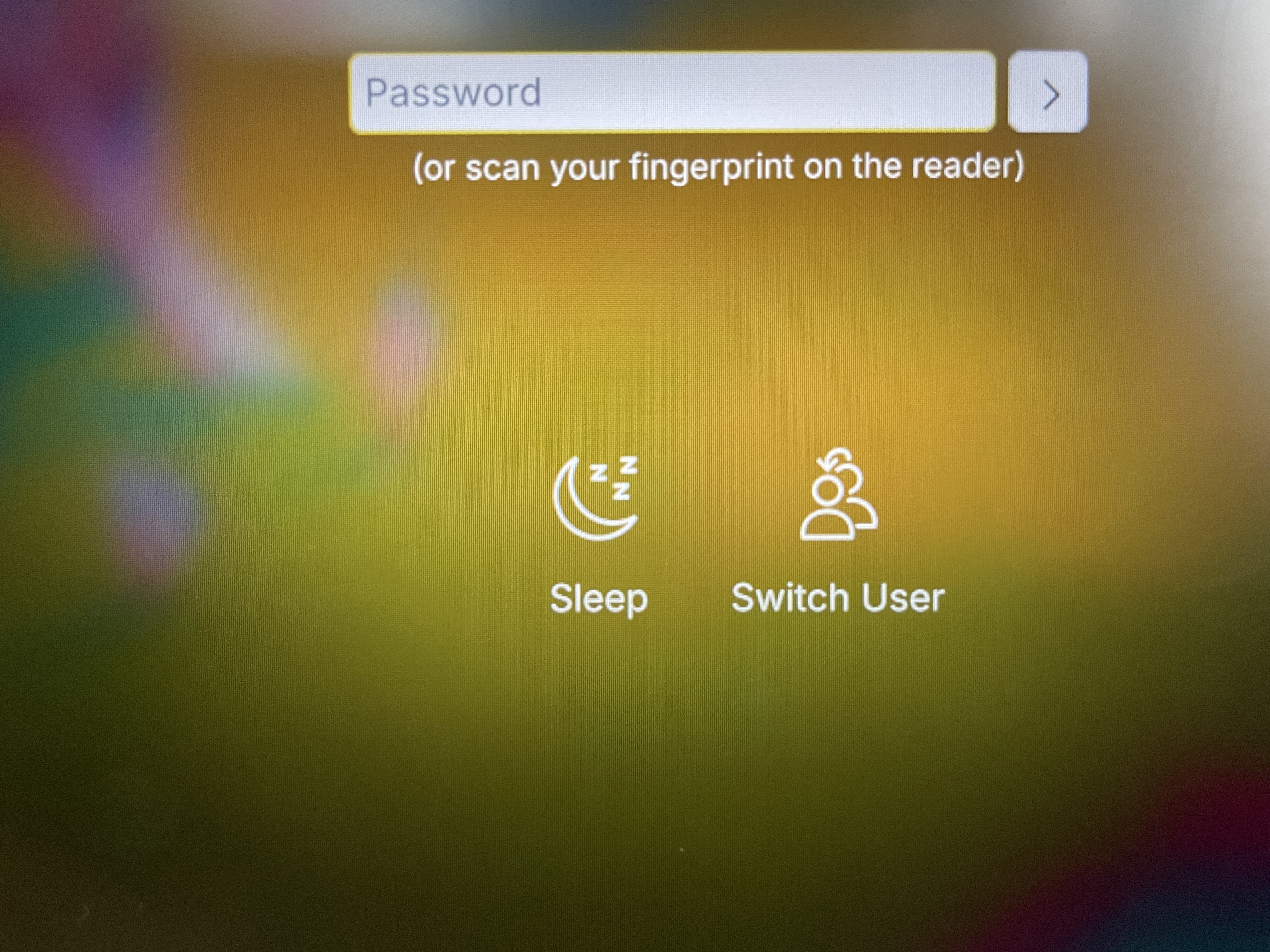

there is a message below the password input field: ‘(or scan your fingerprint on the reader)’
In case 1 if the fingerprint is recognized I am seeing an unlock button before the session is unlocked
In case 2 the session is immediately unlocked upon successful fingerprint recognition.
Which case occurs appears random.
I also appears, that in case 1 the message of case 2 is displayed at first, but for a very short time.
The pam files (I have not changed these from system default):
/etc/pam.d
# ❯ cat kde
#%PAM-1.0
auth include system-local-login
account include system-local-login
password include system-local-login
session include system-local-login
