Multicam Audio Alignment missing from Media Jobs - FFTW DLLs present but ignored

Help
1

Hi everyone,

I’m struggling to get the “Audio Alignment” feature to show up in Kdenlive’s Media Jobs menu. I have already confirmed that the necessary libraries are in place, but the software doesn’t seem to recognize them.

System Details:

  • Kdenlive Version: 24.12.0 and 26.04.0 (Windows).

  • OS: Windows 10/11.

The Issue: The “Set Audio Reference” and “Align Audio” options are missing from the “Media Jobs” menu.

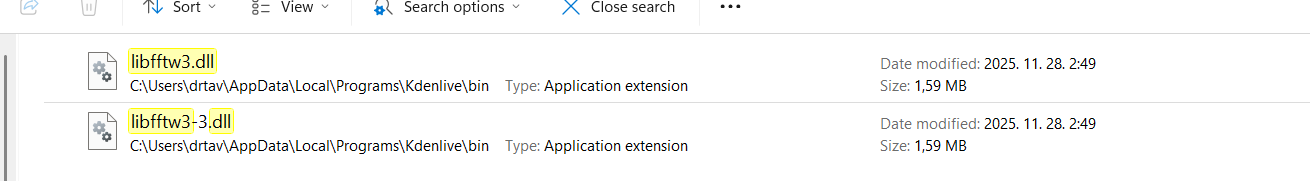

Confirmation of FFTW Files: As shown in the attached screenshot, I have both libfftw3.dll and libfftw3-3.dll in the \bin directory of the Kdenlive installation (AppData\Local\Programs\Kdenlive\bin). Despite having both the original and the renamed version of the library, Kdenlive still acts as if the FFTW dependency is missing.

What I have tried:

  1. Full re-installation of Kdenlive.

  2. Ensuring footage is CFR.

  3. Manually placing/renaming the FFTW DLLs into the \bin folder.

  4. Checking the “Configure Clip Jobs” menu (options are not listed there either).

Is there a registry key, a config file, or an environment variable that needs to be manually set for Kdenlive to detect these DLLs on a Windows system?

image1310×181 12.7 KB

Thank you for your help!

2

If you right-click on a clip in the timeline and select Align to Reference you have the option to Set Audio Reference and Align to Audio Reference. Is that what you are looking for?

3

Align to Reference is only available by right click on a clip in the timeline:

grafik
grafik632×270 19 KB

4

Although it is not advisable, have you tried disabling “Smart App Control” in Windows Security?
Windows blocks .dll files it considers unsafe, and in my case, it has blocked several of them.

If you check that it works after disabling it, you will have found the source of the problem.

Once the test is done, it is recommended to reactivate “Smart App Control” to avoid bigger problems.

Currently, I haven’t managed to solve the problem, but I am lucky not to use the .dll that Windows blocks in my use of KDEnlive :-).

Regards,
Lamola
