"Active Window" screenshot from Spectacle is missing window border on one side

Help
1

Example

The left:

image1280×720 179 KB
[1]

Environment

  1. dolphin-24.12.3-1.fc41.x86_64

  2. spectacle-6.3.3-1.fc41.x86_64

  3. KDE Plasma Version: 6.3.3
KDE Frameworks Version: 6.12.0
Qt Version: 6.8.2
Kernel Version: 6.13.7-200.fc41.x86_64 (64-bit)
Graphics Platform: Wayland

  1. invent.kde.org/frameworks/kio/-/merge_requests/1842#note_1179915 ↩︎

2

Explanation

This occurs to every side that touches the boundary of plasmashell’s desktop:/ window. This means that every window which touches the boundary of the display, or a panel:

Examples

  1. Top-Left

    Screenshot_20250324_190721
    Screenshot_20250324_1907211280×720 17.2 KB

  2. Top-Right

    Screenshot_20250324_190724
    Screenshot_20250324_1907241280×720 17.2 KB

  3. Bottom-Right

    Screenshot_20250324_190726
    Screenshot_20250324_1907261280×690 17 KB

  4. Bottom-Left

    Screenshot_20250324_190729
    Screenshot_20250324_1907291280×690 17 KB

  5. Full-Screen

    Screenshot_20250324_190733
    Screenshot_20250324_1907332560×1410 32.9 KB

Importance

This is really problematic when attempting to acquire 16:9 screenshots.

3

It’s not the same issue exactly, but I wonder if this is somehow connected to the same underlying cause as 498597 – Using Active Window or Select Window mode, window top corners looks weird when using light variant of Breeze - something about borders not being captured or rendered exactly as they are on-screen?

I see the effect described in that bug report on your screenshots as well - although that report mentioned only Breeze Light, and yours seems to be happening on Breeze Dark?

4

@johnandmegh, actually, in this case, Spectacle is capturing exactly what’s rendered. When I tile a window to an edge, I see the window border wrap around the title bar, then stop at the window content, as depicted in the screenshots. I expect that this is a bug in the Breeze KWin SSDs. :frowning:

Thanks for linking that issue, though, because I’ve encountered that too, and that saves me reporting it myself. x

5

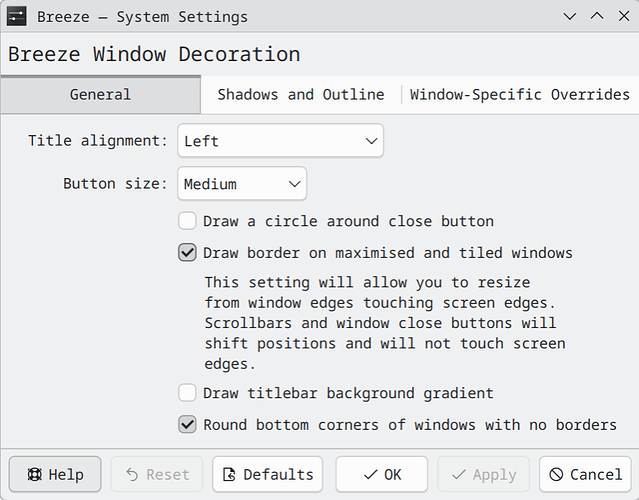

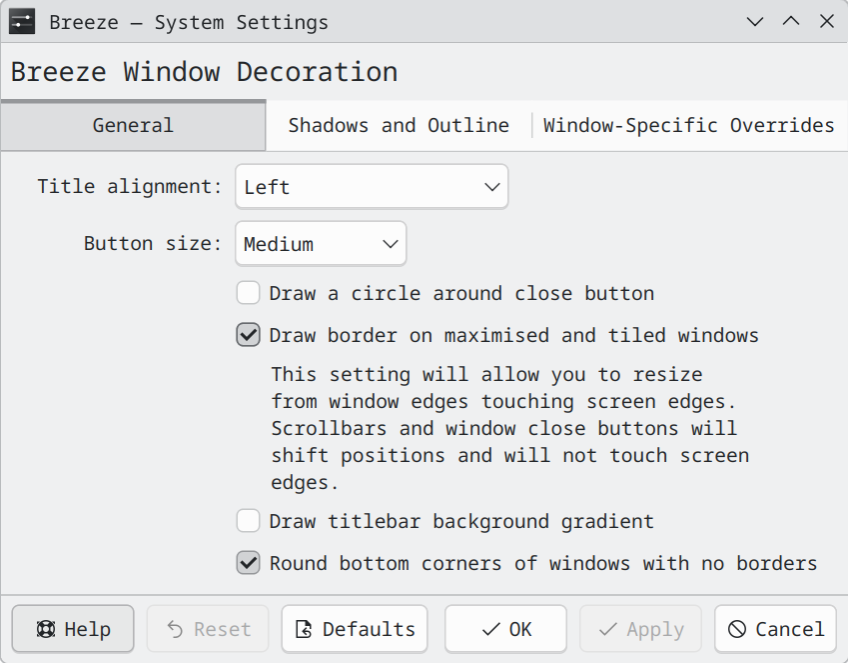

The cause is a Breeze window decoration default:

848×663 135 KB
[1]

  1. bugs.kde.org/show_bug.cgi?id=510982#c16 ↩︎

6

Strangely, like in t/44175, this solely renders the borders around the corners, now:

565×442 54.9 KB
565×442 54.8 KB
2560×1440 82.9 KB
2560×1440 83 KB

My Environment

Operating System: Fedora Linux 43
KDE Plasma Version: 6.5.5
KDE Frameworks Version: 6.22.0
Qt Version: 6.10.1
Kernel Version: 6.18.8-200.fc43.x86_64 (64-bit)
Graphics Platform: Wayland
7

@rokejulianlockhart, I can’t reproduce this issue…

1
1550×566 9.07 KB
2
2609×498 45.4 KB
3
3694×589 76.5 KB
4
41617×1240 366 KB

My Environment

Operating System: EndeavourOS
KDE Plasma Version: 6.5.5
KDE Frameworks Version: 6.22.0
Qt Version: 6.10.2
Kernel Version: 6.18.8-zen2-1-zen (64-bit)
Graphics Platform: Wayland
8

@UncleSpellbinder, you’ve no borders at all, however. That’s worse.

9

@rokejulianlockhart, Huh??

z
z598×604 42.7 KB

1
1550×566 9.07 KB

10

@UncleSpellbinder, kcmshell6 kcm_kwindecoration --highlight offers two options for window boundaries. To elaborate, whereas you refer to:

562×372 40.6 KB

…I refer to:

Try disabling borders, but enabling outlines. I should have utilised more accurate terminology in the original post, in retrospect.

11

Well, I’m using Klassy theme.

cd
cd1474×873 177 KB

12

@UncleSpellbinder, in which case, your situation is likely to be even less applicable, for Klassy doesn’t (yet?) render window decorations as Breeze does:

…and you’ve not configured it similarly, regardless.
