Kernel upgrade seems to have broken sound on my laptop

Hi Guys,

I think it was a kernel upgrade but something has totally broken sound on my laptop.

It was working happily through both the laptop speakers and HDMI for a while there, but for some reason, the devices are still available, but nothing at all is heard.

In an attempt to fix it, I added the pipewire ppa to the system, but that seems to have made things worse as I now have dependency issues I can’t get rid of (even after removing the ppa and doing an apt update).

Reading package lists... Done
Building dependency tree... Done
Reading state information... Done
You might want to run 'apt --fix-broken install' to correct these.
The following packages have unmet dependencies:
 gstreamer1.0-pipewire : Depends: libpipewire-0.3-0 (= 0.3.48-1ubuntu3) but 0.3.78-1~ubuntu22.04 is installed
 pipewire : Depends: libpipewire-0.3-modules (= 0.3.48-1ubuntu3) but 0.3.78-1~ubuntu22.04 is installed
 pipewire-bin : Depends: libpipewire-0.3-modules (= 0.3.48-1ubuntu3) but 0.3.78-1~ubuntu22.04 is installed
                Depends: libpipewire-0.3-0 (= 0.3.48-1ubuntu3) but 0.3.78-1~ubuntu22.04 is installed
E: Unmet dependencies. Try 'apt --fix-broken install' with no packages (or specify a solution).

The system is KDE neon 5.27 on a Dell XPS15 and up to this point was working really well.

I’ve just got it set up nicely so don’t really want to have to blow it away and start again.

Any clues how to progress this? Thanks.
Peter.

You will want to re-add that PPA, update, and then remove it properly using ppa-purge. This will downgrade the packages back to stock ones. Simply disabling the added repo will not do this, so you still have pipewire related packages installed from that PPA, which is what is causing the conflicts.

Which PPA did you add? I am going to guess the pipewire-debian one, from the package versions. I use this myself.

So, after the repo is re-enabled, you can use this to revert back to stock packages properly:

sudo ppa-purge ppa:pipewire-debian/pipewire-upstream

This will remove the PPA itself as well. You may need to install the package ppa-purge.

As to the kernel update breaking your sound, try booting to a previous kernel in Grub to verify that it is working (or not) there.

Thanks @claydoh. You are correct on the ppa that I’m trying to use to fix the problem.

Unfortunately, I can’t install ppa-purge (or anything else for that matter) because of the broken packages I already have it seems.

I did try putting the ppa back (I’d just moved it) and then ran apt-add-repository -r which did seem to remove it OK, but, on apt update I still get the same issues with the same packages.

Sigh.

Caution Required!

The dangerous way of doing this is to force remove all the packages that break your setup (according to what apt complains about) by using sudo dpkg -r --force-depends <package>, the reinstalling what’s needed.

For example, remove gstreamer1.0-pipewire, then run apt install -f to see if APT can fix this - without removing base packages such as plasma-workspace , and remove whatever it complains.

Record whatever you remove that way. After you get APT to fix your package situation, you can make sure to reinstall whatever is needed from the base repositories.

CAUTION CAUTION

Make sure you aren’t driven to remove base system packages!

Thanks @guss77. Seems I may have dug a hole though.

I got to removing xdg-desktop-portal-kde and then it was complaining about plasma-workspace so I tried installing xdg-desktop-portal-kde and working my way back, but, when I try and install xdg-desktop-portal-kde it depends on pipewire so fails.

pipewire depends on pipewire-bin, and
sudo apt install --reinstall pipewire-bin
Reading package lists… Done
Building dependency tree… Done
Reading state information… Done
You might want to run ‘apt --fix-broken install’ to correct these.
The following packages have unmet dependencies:
pipewire-bin : Depends: libpipewire-0.3-modules (= 0.3.48-1ubuntu3) but 0.3.78-1~ubuntu22.04 is to be installed
Depends: libpipewire-0.3-0 (= 0.3.48-1ubuntu3) but 0.3.78-1~ubuntu22.04 is to be installed
Recommends: pipewire-media-session but it is not going to be installed or
wireplumber but it is not going to be installed
plasma-workspace : Depends: xdg-desktop-portal-kde but it is not going to be installed
E: Unmet dependencies. Try ‘apt --fix-broken install’ with no packages (or specify a solution).

which is still stuck in the version hell. So… seems a re-install is going to be the only way out. What a pain.

The other way to solve this issue is to force install the specific versions you need to get in order to satisfy dependencies (I should have suggested that first, but its more complicated to explain, and I actually didn’t think of it at the time).

The problem is that Apt likes to install the latest stuff, and it doesn’t like to downgrade to the point that it often will prevent you installing something if doing so will require something else to be downgraded. You need to tell Apt what versions you need specifically installed, when it complains it can’t install something because the version required is different than the version it thinks you want installed.

To demonstrate, I installed the Debian Pipewire PPA and tried to get my system broken to the same degree (BTW - the Debian Pipewire PPA requires installing ppa-purge - which I didn’t had needed before hand - I wonder what do they know that we don’t…):

$ sudo apt-add-repository ppa:pipewire-debian/pipewire-upstream
$ sudo apt full-upgrade -y
$ sudo rm -f /etc/apt/sources.list.d/pipewire-debian-ubuntu-pipewire-upstream-jammy.list
$ sudo apt update

I can see that the update upgraded these packages:

gstreamer1.0-pipewire libfreeaptx0 liblc3-0 libpipewire-0.3-0 libpipewire-0.3-dev
libpipewire-0.3-modules libspa-0.2-bluetooth libspa-0.2-dev libspa-0.2-jack
libspa-0.2-modules opera-stable pipewire pipewire-bin pipewire-pulse

After removing the the PPA and updating the package database, I can check what versions Apt thinks it has available by using apt policy. For example:

$ apt policy pipewire-pulse
pipewire-pulse:
  Installed: 0.3.78-1~ubuntu22.04
  Candidate: 0.3.78-1~ubuntu22.04
  Version table:
 *** 0.3.78-1~ubuntu22.04 100
        100 /var/lib/dpkg/status
     0.3.48-1ubuntu3 500
        500 http://archive.ubuntu.com/ubuntu jammy-updates/universe amd64 Packages
     0.3.48-1ubuntu1 500
        500 http://archive.ubuntu.com/ubuntu jammy/universe amd64 Packages

You can see that the 0.3.78-1~ubuntu22.04 version is installed, but it doesn’t have a corresponding repository - it’s “coming from the local system” (the /var/lib/dpkg/status line). The “100” means priority - I think - where 100 is “higher priority” then 500, so Apt will prefer to keep installed packages installed.

You can then ask Apt to install the correct version:

$ sudo apt install pipewire-pulse=0.3.48-1ubuntu3
Reading package lists... Done
Building dependency tree... Done
Reading state information... Done
Some packages could not be installed. This may mean that you have
requested an impossible situation or if you are using the unstable
distribution that some required packages have not yet been created
or been moved out of Incoming.
The following information may help to resolve the situation:

The following packages have unmet dependencies:
 pipewire-pulse : Depends: pipewire (= 0.3.48-1ubuntu3) but 0.3.78-1~ubuntu22.04 is to be installed
E: Unable to correct problems, you have held broken packages.

It did not like that - because even though the dependency for pipewire-pulse=0.3.48-1ubuntu3 - the package pipewire at version 0.3.48-1ubuntu3 - is available in the repository, it is of lesser priority than the version you have installed - so we need to force that one as well. Just copy the name of the dependency Apt reports, and the version requirement and put them at the end of the previous install line using the same format (mind those spaces!):

$ sudo apt install pipewire-pulse=0.3.48-1ubuntu3 pipewire=0.3.48-1ubuntu3
...
The following packages have unmet dependencies:
 pipewire : Depends: libpipewire-0.3-modules (= 0.3.48-1ubuntu3) but 0.3.78-1~ubuntu22.04 is to be installed
            Depends: pipewire-bin (= 0.3.48-1ubuntu3)
E: Unable to correct problems, you have held broken packages.

More complaints. That’s OK - lather, rinse, repeat until your hair is clean… uhmm… until Apt is happy…

$ sudo apt install pipewire-pulse=0.3.48-1ubuntu3 pipewire=0.3.48-1ubuntu3 libpipewire-0.3-modules=0.3.48-1ubuntu3 pipewire-bin=0.3.48-1ubuntu3 libpipewire-0.3-0=0.3.48-1ubuntu3 libpipewire-0.3-0=0.3.48-1ubuntu3 libspa-0.2-modules=0.3.48-1ubuntu3
Reading package lists... Done
Building dependency tree... Done
Reading state information... Done
The following packages were automatically installed and are no longer required:
  libconfig++9v5 libfdk-aac2 libffado2 liblc3-0 liblc3-1 libldacbt-abr2 libmujs2 libopenfec libroc libsixel1 libspa-0.2-dev libxml++2.6-2v5
Use 'sudo apt autoremove' to remove them.
The following additional packages will be installed:
  pipewire-media-session
Recommended packages:
  pipewire
The following packages will be REMOVED:
  gstreamer1.0-pipewire libkpipewire-dev libpipewire-0.3-dev libspa-0.2-bluetooth libspa-0.2-jack libwireplumber-0.4-0 mpv wireplumber
The following NEW packages will be installed:
  pipewire-media-session
The following packages will be DOWNGRADED:
  libpipewire-0.3-0 libpipewire-0.3-modules libspa-0.2-modules pipewire pipewire-bin pipewire-pulse
0 upgraded, 1 newly installed, 6 downgraded, 8 to remove and 5 not upgraded.
Need to get 1,809 kB of archives.
After this operation, 8,255 kB disk space will be freed.
Do you want to continue? [Y/n]

Oh oh!!

Apt now wants to remove packages that I think I need! gstreamer1.0-pipewire, mpv and some dev packages that I may want. So - stop! don’t make the changes, and lets investigate further. Can we get a version of gstreamer1.0-pipewire that Apt will be happy to keep?

$ apt policy gstreamer1.0-pipewire
gstreamer1.0-pipewire:
  Installed: 0.3.78-1~ubuntu22.04
  Candidate: 0.3.78-1~ubuntu22.04
  Version table:
 *** 0.3.78-1~ubuntu22.04 100
        100 /var/lib/dpkg/status
     0.3.48-1ubuntu3 500
        500 http://archive.ubuntu.com/ubuntu jammy-updates/main amd64 Packages
     0.3.48-1ubuntu1 500
        500 http://archive.ubuntu.com/ubuntu jammy/main amd64 Packages

Well - same problem: the version we have installed is unsupported by a known repository and all the others have low priority. Nothing else seems to require it on my system (YMMV) so Apt suggest to just remove it - which is definitely something I’m opposed to. So - let’s go ahead and tell Apt to downgrade those packages as well (you’d need to actually go and run apt policy on each to figure out the correct version numbers). You’ll need to pay attention to possible “gotchas” - for example in my case Apt threatens to remove libkpipewire-dev, but that is actually using the correct version (the latest Neon Jammy in my case) and I don’t want to downgrade it (or uninstall). By adding that package name, with the specific version it already is installed with, to the Apt install command, I can see that it actually has a problem with libpipewire-0.3-dev:

The following packages have unmet dependencies:
 libkpipewire-dev : Depends: libpipewire-0.3-dev but it is not going to be installed

Which was actually listed immediately after in the “packages to remove” line, so I would have gotten to it eventually, but paying attention to details is important.

Eventually, after a lot of back and forth with failing or stopping apt install and judicious use of apt policy, we get to this:

$ sudo apt install pipewire-pulse=0.3.48-1ubuntu3 pipewire=0.3.48-1ubuntu3 libpipewire-0.3-modules=0.3.48-1ubuntu3 pipewire-bin=0.3.48-1ubuntu3 libpipewire-0.3-0=0.3.48-1ubuntu3 libpipewire-0.3-0=0.3.48-1ubuntu3 libspa-0.2-modules=0.3.48-1ubuntu3  gstreamer1.0-pipewire=0.3.48-1ubuntu3 mpv=0.34.1-1ubuntu3  libkpipewire-dev=5.27.7-0xneon+22.04+jammy+release+build19 libpipewire-0.3-dev=0.3.48-1ubuntu3 libspa-0.2-dev=0.3.48-1ubuntu3 libspa-0.2-bluetooth=0.3.48-1ubuntu3 libspa-0.2-jack=0.3.48-1ubuntu3 libwireplumber-0.4-0=0.4.8-4 wireplumber=0.4.8-4
Reading package lists... Done
Building dependency tree... Done
Reading state information... Done
libkpipewire-dev is already the newest version (5.27.7-0xneon+22.04+jammy+release+build19).
The following packages were automatically installed and are no longer required:
  libconfig++9v5 libfdk-aac2 libffado2 liblc3-0 liblc3-1 libmujs2 libopenfec libroc libxml++2.6-2v5
Use 'sudo apt autoremove' to remove them.
The following additional packages will be installed:
  libmujs1 libplacebo192
Suggested packages:
  pipewire-doc libcuda1
Recommended packages:
  pipewire
The following NEW packages will be installed:
  libmujs1 libplacebo192
The following packages will be DOWNGRADED:
  gstreamer1.0-pipewire libpipewire-0.3-0 libpipewire-0.3-dev libpipewire-0.3-modules libspa-0.2-bluetooth libspa-0.2-dev libspa-0.2-jack libspa-0.2-modules libwireplumber-0.4-0 mpv pipewire pipewire-bin pipewire-pulse wireplumber
0 upgraded, 2 newly installed, 14 downgraded, 0 to remove and 5 not upgraded.
Need to get 6,024 kB of archives.
After this operation, 4,895 kB of additional disk space will be used.
Do you want to continue? [Y/n]

No packages are going to be removed, and all the problematic packages are going to be downgraded to the supported versions. Excellent! Lets go ahead and do that.

After all the installation is complete, sudo apt install -f says that everything is fine. When the smoke clears, we just need to review our system and figure out if we’re still missing some functionality (don’t forget to make sure plasma-pa and pipewire-pulse are installed, for audio support in Plasma).

Good luck!

The problem is with the newer PPA packages you currently have installed are conflicting with the stock ones. Using ppa-purge should have downgraded all them back to the stock versions, and then disabled the PPA

I suggested re-enabling or re-adding the PPA, which would at least allow you to update and get the pipewire packages to match (hopefully) and install (hopefully) to clear out these dep issues so that ppa-purge can be installed and then properly downgrade things. Looks like I missed the “add the PPA and then update” part, sorry!

WOW @guss77 Thank you!!! that is an amazing amount of work. I greatly appreciate it (and yours too @claydoh).

I now have a sane set of apt packages by the looks of things, and pipewire ppa is removed (using with ppa-purge).

But, the substantive issue still remains. I have no sound.

The devices seem to be recognised (only on the laptop at the moment) but no amount of testing will produce so much as a squeak.

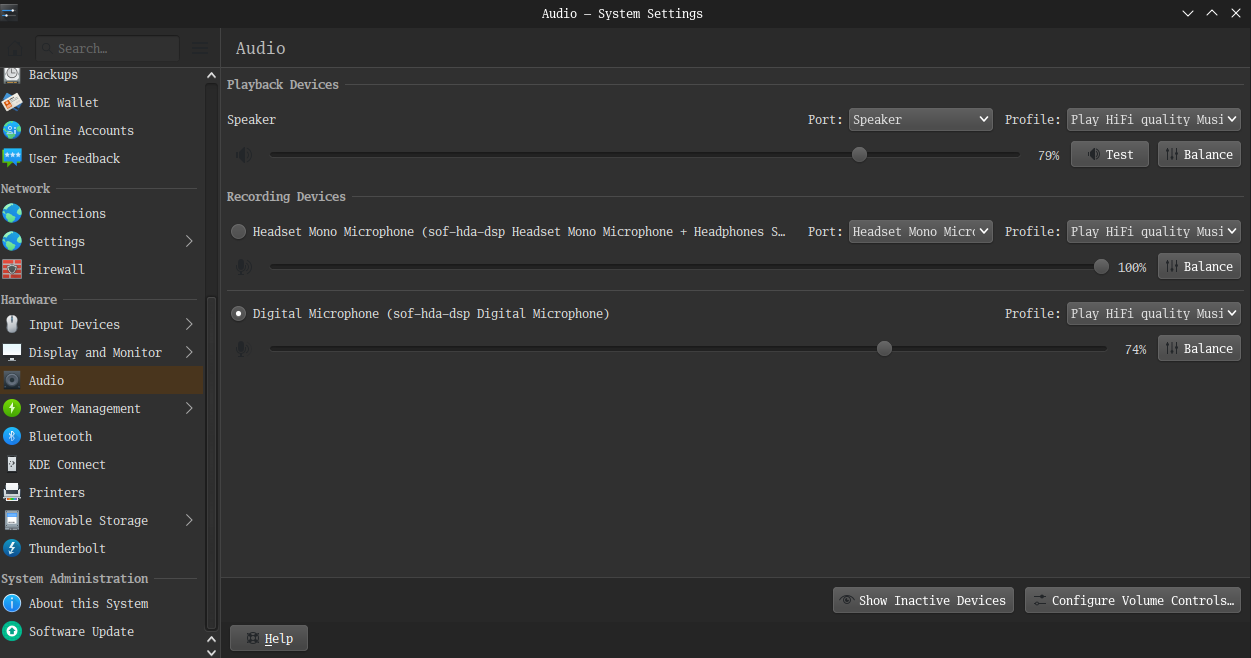

The settings system has the devices.

But when I try and test the output, nothing!

The audio issue could be a configuration issues with the 3 channel audio jack.

Can you please see if any of the options suggested in this AskUbuntu question help?

(But don’t do the whole install/reinstall stuff from the second answer - the important part there is removing the PulseAudio configuration files).

Sadly no. No change with removing the configs, or pulse, or installing pavucontrol, or adding the line to the config file.

Still digging :slight_smile:

  1. Did you reboot after changing the mode options file?
  2. Did you try to change the default microphone?

ok, another shot in the dark… (usual disclaimer: I’m here on FreeBSD, it uses OSS instead of ALSA, so ymmv :wink:

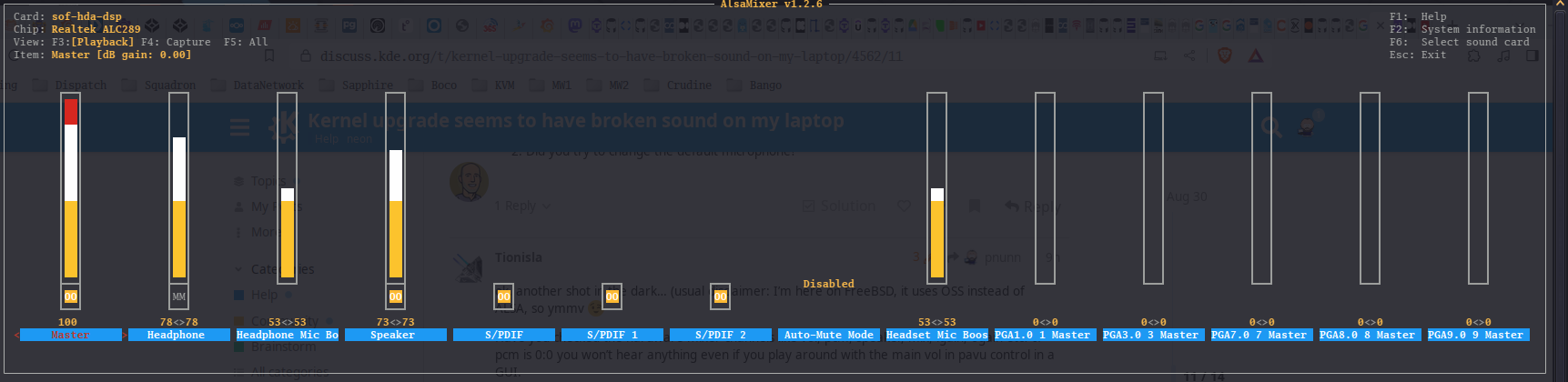

Have you checked the hardware mixer channels like vol, pcm, speaker, mix, igain, ogain etc? If pcm is 0:0 you won’t hear anything even if you play around with the main vol in pavu control in a GUI.

The easiest way to check is something like a mixer app in a terminal window like alsamixer (or mixertui on *BSD)

Kernel upgrade seems to have broken sound on my laptop

Have you tried booting to a previous kernel, to see if that may be the issue?

@guss77 Yes and yes :slight_smile:

Hi @Tionisla,

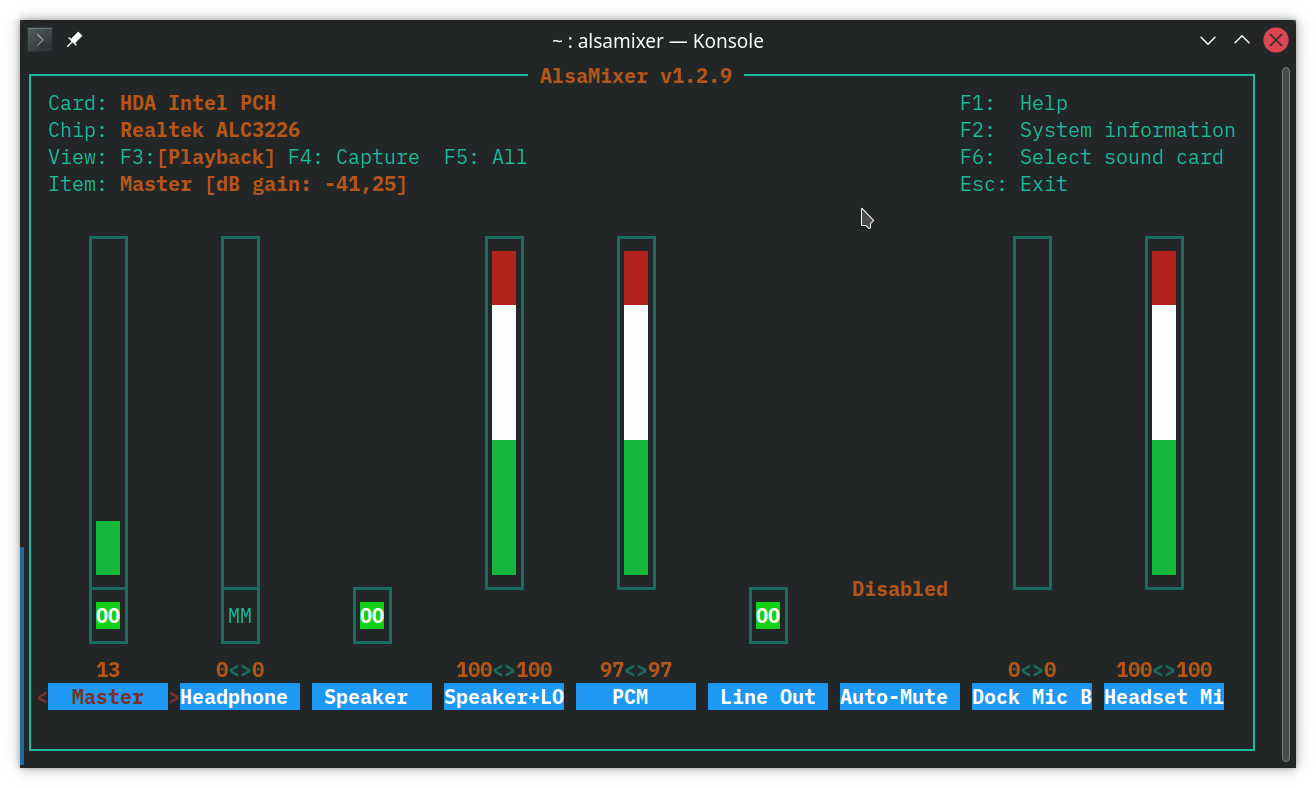

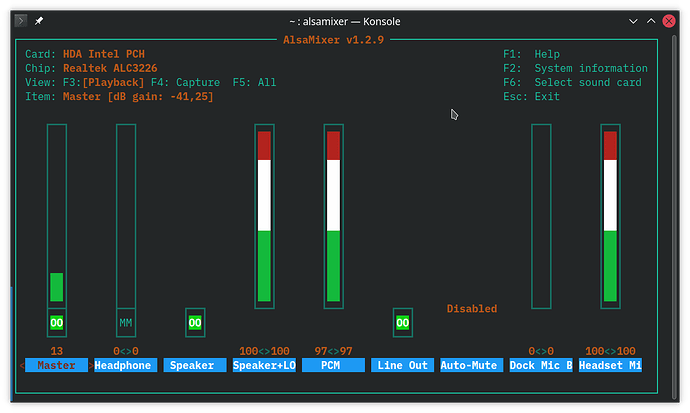

stumbled across the mixer yesterday and hoped I was onto something but I think it looks to be showing output in the correct places

1 Like

@claydoh, I spent a while yesterday trying to convince this thing to boot into a 15 kernel (the last one on the system) but for some reason the boot hung each time so I didn’t have much joy there unfortunately.

ok, too bad, at least it was worth a try.

Hmm, both soundcards of the two notebooks I have running here have entries for pcm, which is missing here, but this might be just because of different hardware.

Maybe just to be sure, check out “Select Soundcard”, other than that I’m at loss, here. Sorry.

OK, I’m about to give up on this and re-install something other than Neon. I can’t get bluetooth to work now for audio either with
br-connection-profile-unavailable errors when I try and start the speakers.

Really annoying as the rest of the system is working really nicely at the moment.

Anyone have any last suggestions before I kill this thing? So annoying that everything seems to be there, just no sound output.

OK, so I booted to a live Kubuntu iso to check that the sound hardware was infact still working and it wasn’t a hardware issue.

During that process I did an
apt list --installed |grep pulse
apt list --installed | grep pipe

The only difference seems to be

libkpipewiredmabuf5/now 5.27.4-0ubuntu1 is installed on the Kubutu machine but not on this one.

I tried to find that library somewhere, but so far no joy.

Is that likely to be the issue? If so, where would I find it?

That package should be called something like kpipewire, libkpipewire5 or libkpipewiredmabuf5 (looking at Ubuntu – Package Search Results -- kpipewire)

On my non Ubuntu system its just called kpipewire.

1 Like
