Hello!
I’m trying to write a frei0r effect for Kdenlive but I’m having some trouble with the %out and %fade variable. I took the XML parameters from the fade_to_black effect and put those in my own XML file. I tried reading them and that works but it looks like they aren’t updating properly when the clip changes length.

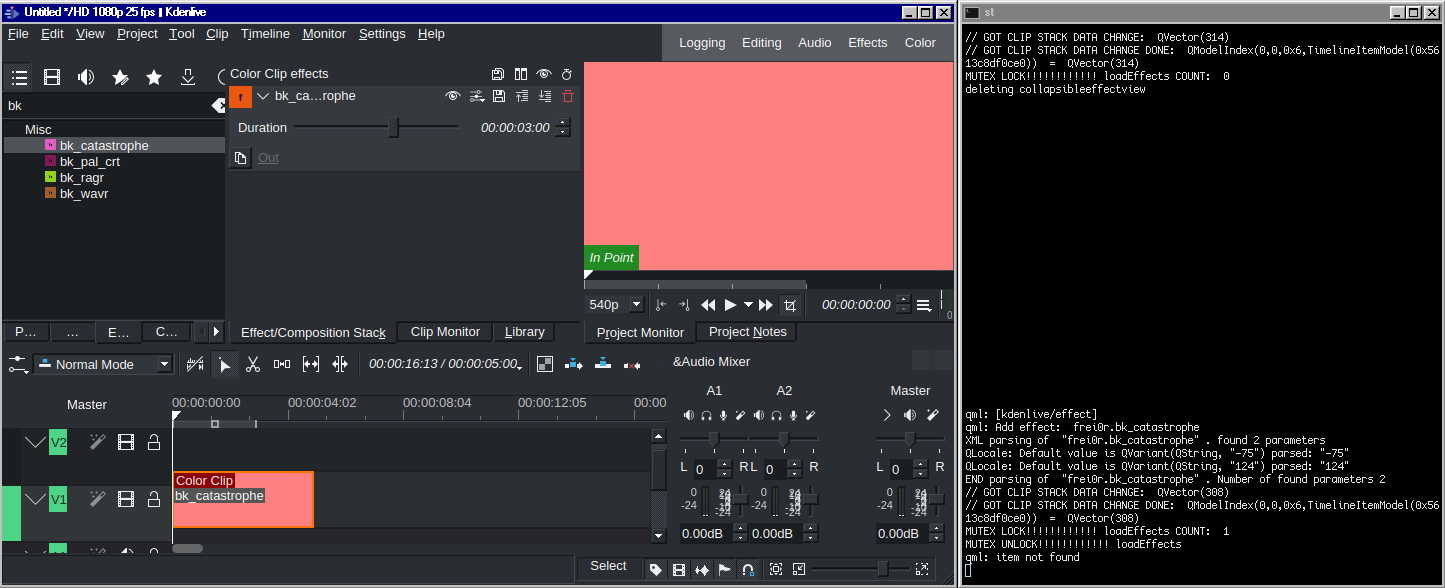

Here I’m applying my effect to a simple color clip:
(Apparently I’m not allowed to embed multiple files? so I’m using a different host for my images from here)
I go to the part where the effect is supposed to be active and that works (currently, the effect sets all pixels to #000000):
But when I extend the clip and go to the extended part, my effect is not being applied:
Here is the source code of my effect:
#include <float.h>
#include <math.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include "frei0r.h"
typedef struct catastrophe_instance {
unsigned int width;
unsigned int height;
int in;
int out;
} catastrophe_instance_t;
int f0r_init()
{
return 1;
}
void f0r_deinit()
{}
void f0r_get_plugin_info(f0r_plugin_info_t *catastrophe_info)
{
catastrophe_info->name = "bk_catastrophe";
catastrophe_info->author = "BIG KRIMPIN";
catastrophe_info->plugin_type = F0R_PLUGIN_TYPE_FILTER;
catastrophe_info->color_model = F0R_COLOR_MODEL_RGBA8888;
catastrophe_info->frei0r_version = FREI0R_MAJOR_VERSION;
catastrophe_info->major_version = 0;
catastrophe_info->minor_version = 1;
catastrophe_info->num_params = 2;
catastrophe_info->explanation = "Simulates the DOOM melting title screen";
}
f0r_instance_t f0r_construct(unsigned int width, unsigned int height)
{
catastrophe_instance_t *inst = (catastrophe_instance_t*)calloc(1, sizeof(*inst));
inst->width = width;
inst->height = height;
inst->in = 0;
inst->out = 0;
return (f0r_instance_t)inst;
}
void f0r_destruct(f0r_instance_t instance)
{
free(instance);
}
void f0r_get_param_info(f0r_param_info_t *info, int param_index)
{
switch(param_index)
{
case 0:
info->name = "in";
info->type = F0R_PARAM_DOUBLE;
info->explanation = "";
break;
case 1:
info->name = "out";
info->type = F0R_PARAM_DOUBLE;
info->explanation = "";
break;
}
}
void f0r_set_param_value(f0r_instance_t instance, f0r_param_t param,
int param_index)
{
catastrophe_instance_t *inst = (catastrophe_instance_t*)instance;
switch(param_index)
{
case 0:
printf("in set\n");
inst->in = *((double*)param);
break;
case 1:
printf("out set\n");
inst->out = *((double*)param);
break;
}
}
void f0r_get_param_value(f0r_instance_t instance, f0r_param_t param,
int param_index)
{
catastrophe_instance_t *inst = (catastrophe_instance_t*)instance;
switch(param_index)
{
case 0:
*((double*)param) = inst->in;
break;
case 1:
*((double*)param) = inst->out;
break;
}
}
// Give every strip a random number as the speed of the downwards motion.
// Move each strip downwards with it's own speed
// After 10-20% of the given time, move every strip with the same speed
void f0r_update(f0r_instance_t instance, double time, const uint32_t *inframe,
uint32_t *outframe)
{
catastrophe_instance_t *inst = (catastrophe_instance_t*)instance;
int w = inst->width;
int h = inst->height;
memset(outframe, 0x00, sizeof(uint32_t) * w * h);
printf("%f\n", time);
printf("in: %d\n", inst->in);
printf("out: %d\n", inst->out);
}
And corresponding XML file:
<?xml version="1.0"?>
<!DOCTYPE kpartgui>
<effect tag="frei0r.bk_catastrophe" id="frei0r.bk_catastrophe" type="video" unique="1">
<name>bk_catastrophe</name>
<description>Simulates the DOOM melting title screen</description>
<author>BIG KRIMPIN</author>
<parameter type="position" name="in" max="0" min="0" default="-%fade">
<name>Duration</name>
</parameter>
<parameter type="fixed" name="out" max="90000" min="0" default="%out">
<name/>
</parameter>
</effect>
Am I doing something wrong? Is this a known limitation of the frei0r integration? Or is this a bug?
